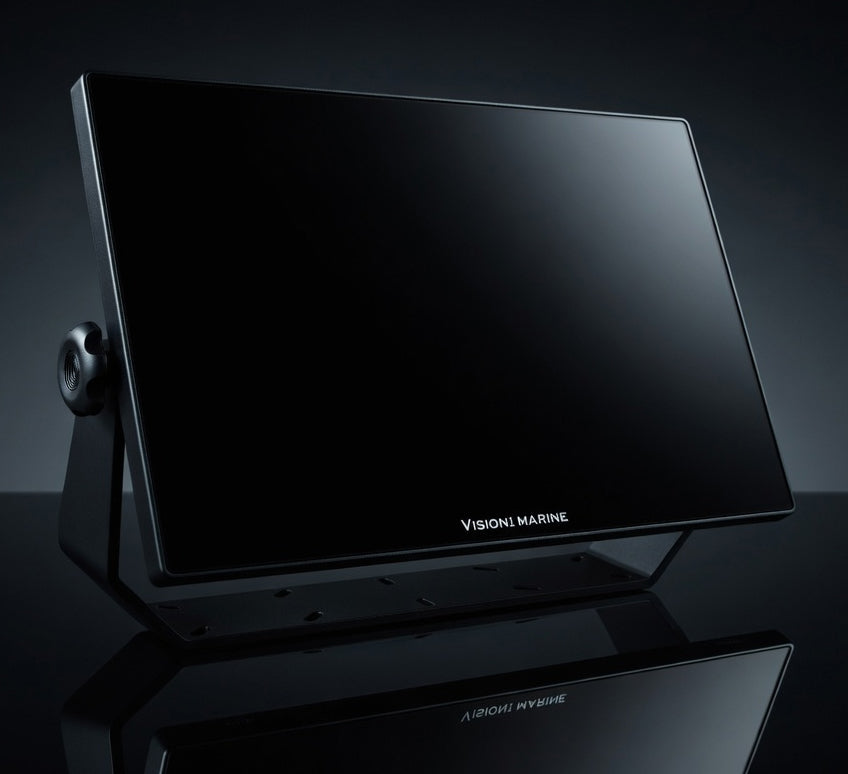

Premium 18.5” Marine Display Screens

$2,999.00 AUD
$3,500.00 AUD $2,999.00 AUD
Sale Sold out
View full details

High Performance

Rugged marine displays purpose-built for exceptional clarity, long-term durability, and total confidence on the water.

Choose a premium 18.5” or 21” marine display and enjoy a large-format viewing experience at a fraction of the cost of purchasing a complete sounder system.

Designed to work seamlessly with your existing Garmin unit, it’s a smarter, more flexible way to upgrade your setup without compromise.

Technical Specifications

Included in the box

Protective Cover

HDMI/USB 9m Power cable

Maintenance Guide

Fuse holder

Dielectric grease

2 Year Warranty

LCD & Touch Panel

Panel Size
18.5" (16:9)

Native Resolution
1920x1080 HD

Brightness (CD/M2)
1500 NITS

Contrast Ratio
1200:1

View Angle
89/89/89/89 Deg

Touch Screen Type
10 points projected capacitive touch

Touch interface
USB

Surface Hardness
7H

Surface Treatment
AG (Anti Glare)

Touch Bonding
Optical Bonding

M16 Waterproof Interface

Video Input
1*IP67 HDMI

Touch Screen Interface
1*IP67 USB

Power Connector
1*IP67 DC / 12-24V



OSD & Operation Environment

Function Keys
5 Keys: Power/ Menu/ Up/ Down/ Return

Menu Functions
Brightness, Contrast, Saturation, Screen Setting, Colour Temp, OSD Language,
Reset

Temperature Range
Operating: -20 to 80 Degrees / Storage -30 to 85 degrees Celsius

Relative Humidity
Operating 10% to 90% / Storage 5% to 90%

Power Connector
1*IP67 DC/ 12-24V

Power Supply & Compatibility

Operating Voltage
Supports a wide input range of 12V–24V, making it suitable for a variety
of marine electrical systems.

Power Consumption

  • 3.0A at 12V
  • 1.5A at 24V

Compatible Garmin Devices

  • GPSMAP
    9000 series
  • GPSMAP
    8412 & 8416
  • GPSMAP
    5312 & 5316
  • GPSMAP
    9500 Black Box
  • GPSMAP
    8700 Black Box
  • ECHOMAP
    Ultra 2 16”     (mirror mode only)

    Humminbird Apex
    (mirror mode only)
